• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 310971

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UBF80 UCL82 UY42

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110-127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

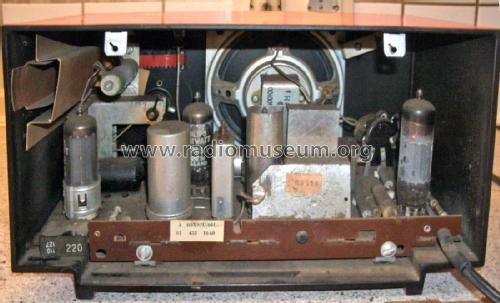

• Model: B0X97U /00L - Philips; Eindhoven tubes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 261 x 142 x 142 mm / 10.3 x 5.6 x 5.6 inch

• Notes

• B0X97U /00L mit rotem Gehäuse, with red cabinet.

  Siehe auch:

  • B0X97U /00R mit schwarzem Gehäuse, with black cabinet.
  • B0X97U /00K mit beigem Gehäuse, with beige cabinet.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
