B2E14A /00K /00F

• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62495

• Picture

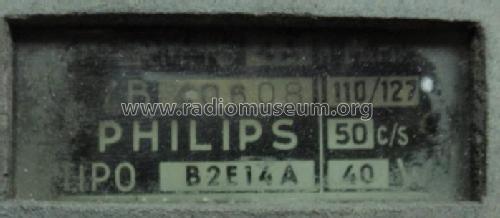

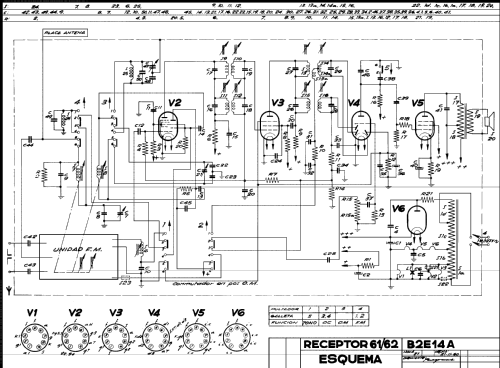

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-127 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: B2E14A /00K /00F - Philips Ibérica, COPRESA,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 296 x 167 x 149 mm / 11.7 x 6.6 x 5.9 inch

• Notes

• AM: 185 - 585 m.
  OC: 46,8 - 51,7 m.

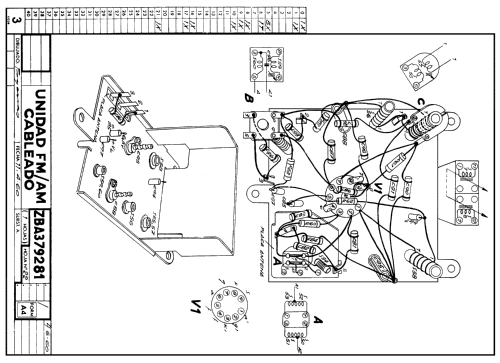

  FM: 87,5 - 100 MHz, utilizando módulo FM-AM tipo ZB A3 792 81

  Variante /00K = mueble color Arena (sand)
  Variante /00F = mueble color Verde (green)

• External source of data
• Ernst Erb

• Source of data
• Radio Historia y Técnica, J.J.E.

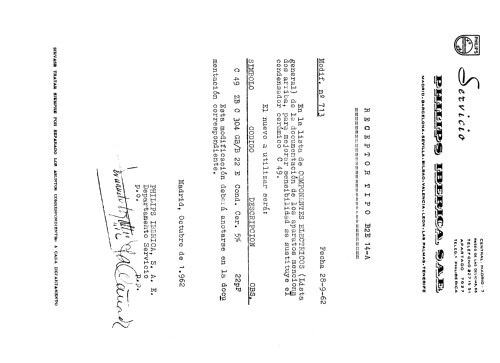

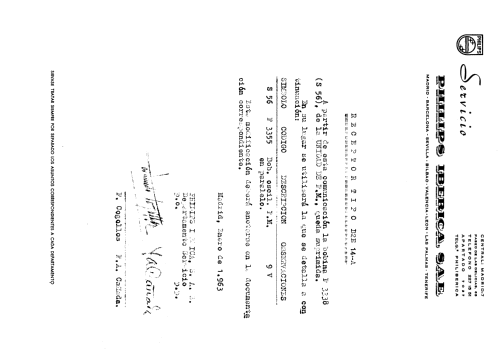

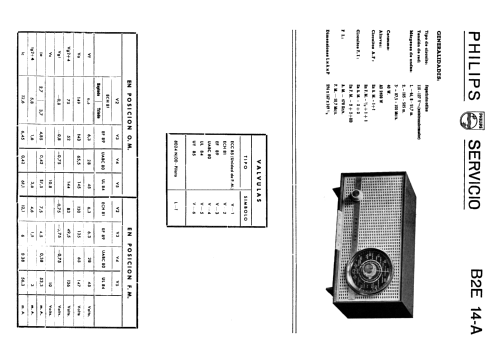

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 630 models, 524 with images and 469 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
