• Country
• Mexico

• Manufacturer / Brand
• Philips Mexicana S.A. de C.V.; Mexico D.F.

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 246538

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UF89 UBC81 UL84 UY41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 90-127 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

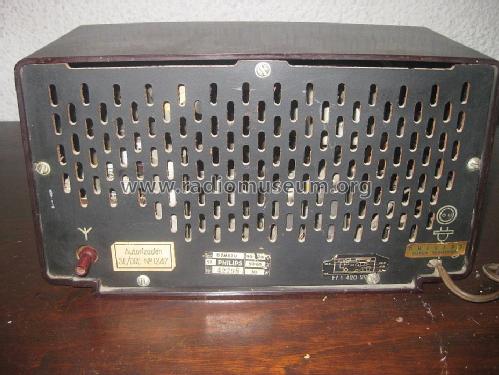

• Model: B2M67U - Philips Mexicana S.A. de C.V.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 305 x 175 x 150 mm / 12 x 6.9 x 5.9 inch

• Notes

• SW: 17 ... 62 m

• Author
• Model page created by Aglef Tröger. See "Data change" for further contributors.
