• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29626

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org

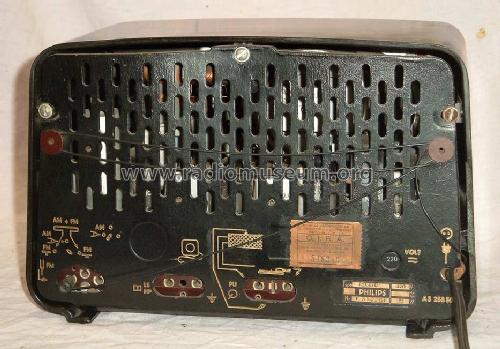

• Model: B2X63U /00 - Philips; Eindhoven tubes

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 285 x 181 x 166 mm / 11.2 x 7.1 x 6.5 inch

• Notes
• AM radio with built-in ferroceptor:
  • LW: 150 - 340 kHz.
  • BC: 517 - 1600 kHz.
  • SW: 6 - 12 MHz.
  FM radio with dipole antenna input: 87.5 - 100 MHz.

  Loudspeaker AD2460X (5 Ohm, oval).
  2 dial lamps: 8089D-00 (12V / 100mA).

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

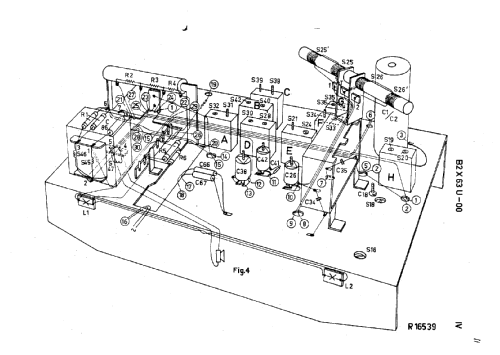

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
