• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166071

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz; Export model

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 127/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

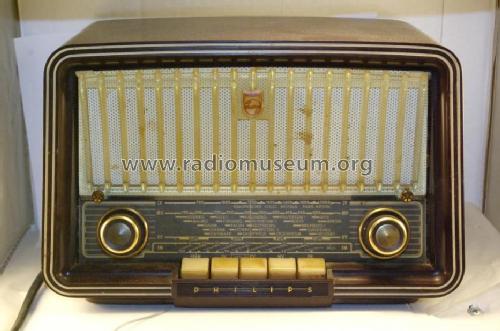

• Model: B2X63U /69 - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 285 x 181 x 166 mm / 11.2 x 7.1 x 6.5 inch

• Notes

• Gerät speziell für den schwedischen Markt gefertigt; Tastatur-Symbolik und Skalenbeschriftung auf schwedisch.

  Gefertigt in der Apparatefabrik Wetzlar.

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Aglef Tröger. See "Data change" for further contributors.
