• Country
• Portugal

• Manufacturer / Brand
• Philips Portugal

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72539

• • Brand: FAPAE

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UF89 UBC81 UL84 UY42

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110-127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org

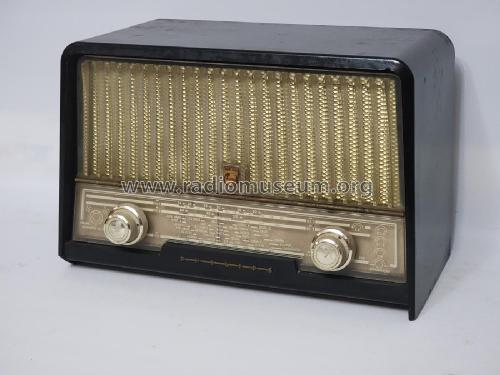

• Model: B3LN66U - Philips Portugal

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 321 x 201 x 164 mm / 12.6 x 7.9 x 6.5 inch

• Notes

• OC 1:13.6...43.5 m
  OC 2: 40.8...118 m
  OM: 186.4...580 m

  See also Philips B3LN66U /35 with different SW/OC ranges.

  Dial lamp: 8097D (19V/0,1A). Same chassis as the Philips B3X66U.





• Price in first year of sale
• 1,750.00 PTE

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
