B3LN95U /35
Philips Portugal
- Country
- Portugal
- Manufacturer / Brand
- Philips Portugal
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 320044
-
- Brand: FAPAE
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 110-127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: B3LN95U /35 - Philips Portugal
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 328 x 183 x 155 mm / 12.9 x 7.2 x 6.1 inch
- Notes
-

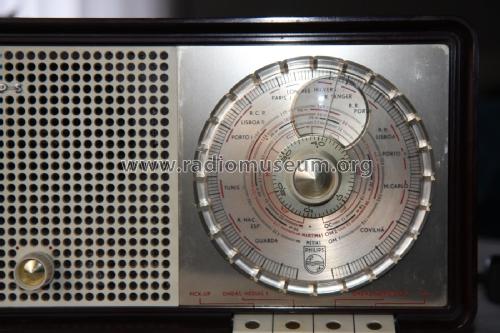

MW = 550-190 m;
SW1 = 170-55 m is called "Onda Maritima 2";
SW2 = 50-17 m.
Dial lamp 8009D (6,3V/0,25A).
- Net weight (2.2 lb = 1 kg)
- 2.8 kg / 6 lb 2.7 oz (6.167 lb)
- Author
- Model page created by José Manuel Silvestre. See "Data change" for further contributors.
