• Country
• Brazil

• Manufacturer / Brand
• Philips do Brasil S.A.

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 271484

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UBF80 UCL82 UY89

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); none

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-117; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 2 W (unknown quality)

• Material
• Special material, described in the notes.

• from Radiomuseum.org
• Model: B3R08A - Philips do Brasil S.A.

• Shape
• Tablemodel, with any shape - general.

• Notes

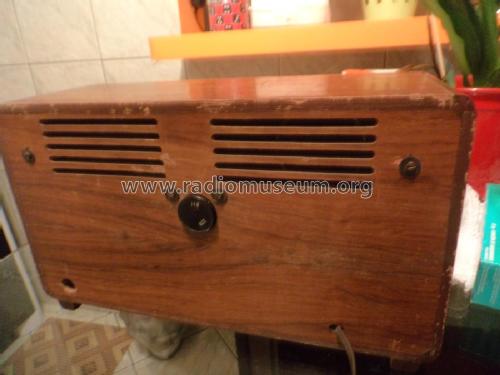

• Frontal em plastico moderno e gabinete em madeira.

• Author
• Model page created by Alberto Tahyra. See "Data change" for further contributors.
