B3X00U /00K /00L /00R

• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29640

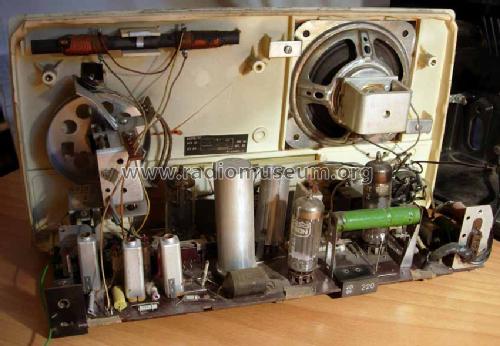

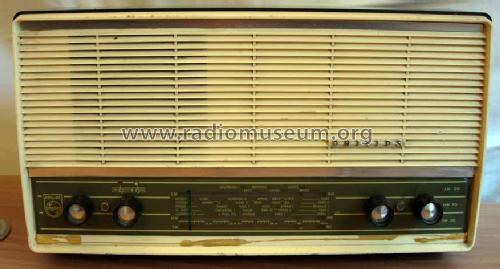

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UBF80 UCL82 UY89

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.7 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: B3X00U /00K /00L /00R - Philips Belgium Belgien

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 350 x 195 x 146 mm / 13.8 x 7.7 x 5.7 inch

• Notes

• Wave bands:
  LW: 1154 - 2000 m
  MW: 185 - 580 m
  SW: 16.58 - 51 m

  Speaker type AD2400W.

  3 different colors.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 1,750.00 BFr

• Mentioned in
• -- Original prospect or advert (Catalogue "Radio Creations" 1962/1963)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
