• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29639

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC45 or. 2N410 OC45 or. 2N410 OC71 OC71 OC72 OC72 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: B3X01T /00F /00L - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 303 x 202 x 103 mm / 11.9 x 8 x 4.1 inch

• Notes
• 3 cabinet versions: /00R : Black; /00F : Green /00L : Red.

  AM radio with built-in ferroceptor:
  • LW: 150 - 400 kHz.
  • BC: 517 - 1622 kHz.
  • SW: 6 - 18 MHz.
  Amplifier: 1 x 300 mW (loudspeaker AD3500Z).

• External source of data
• Erb

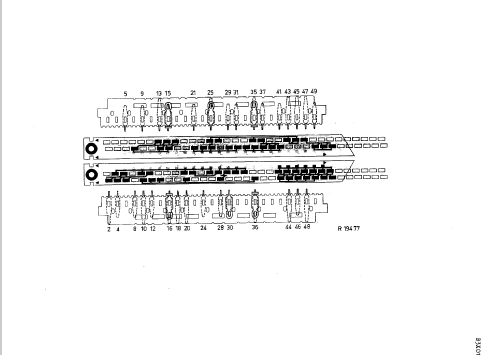

• Literature/Schematics (1)
• -- Original-techn. papers.
