- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 278654
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz; Export model
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- AC/DC-set / 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

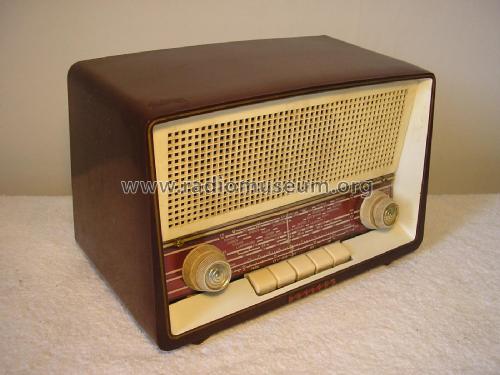

- Model: B3X81U /19L - Philips; Eindhoven tubes
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 293 x 193 x 170 mm / 11.5 x 7.6 x 6.7 inch
- Notes
-
Philips B3X81U /19L is an export model for Sweden.
Dial lamps: 8089D-00 12V / 0,1ASee also model B3X81U /19 /69 for the Netherlands and Belgium.
- Author
- Model page created by Timo Rantasaari. See "Data change" for further contributors.
