B3X85U /04
Philips Belgium (Belgien)
- Country
- Belgium
- Manufacturer / Brand
- Philips Belgium (Belgien)
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328194

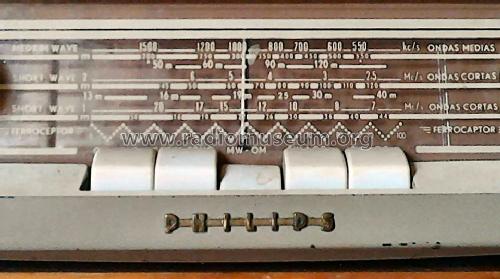

photos supplied by Kevin Turner, UK
photos supplied by Kevin Turner, UK
photos supplied by Kevin Turner, UK
photos supplied by Kevin Turner, UK
photos supplied by Kevin Turner, UK
photos supplied by Kevin Turner, UK
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 110-127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: B3X85U /04 - Philips Belgium Belgien
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 322 x 192 x 176 mm / 12.7 x 7.6 x 6.9 inch
- Notes
-
MW= 517-1622 kHz; KW3= 2,54-7,35 MHz; KW2= 6,9-22 MHz. Dial lamps: 2x 8089D (12V/0,1A).
- Author
- Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
