B4X11T /00F /00K /00R
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 277268

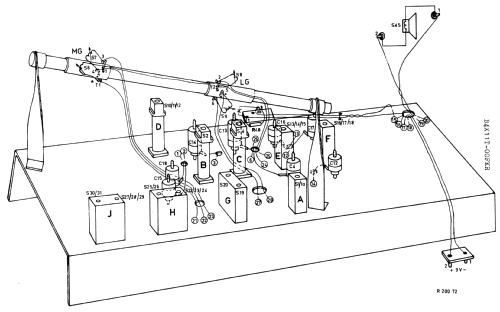

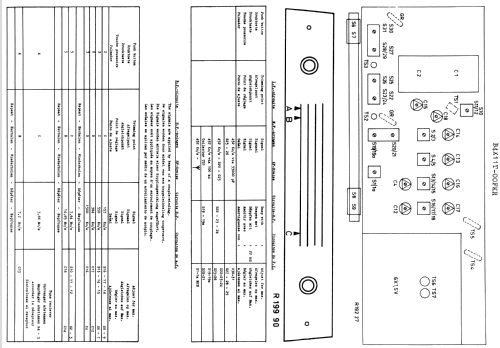

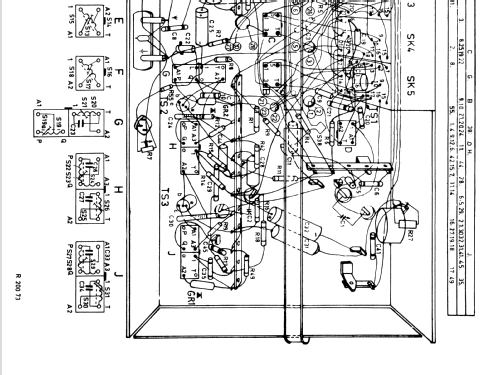

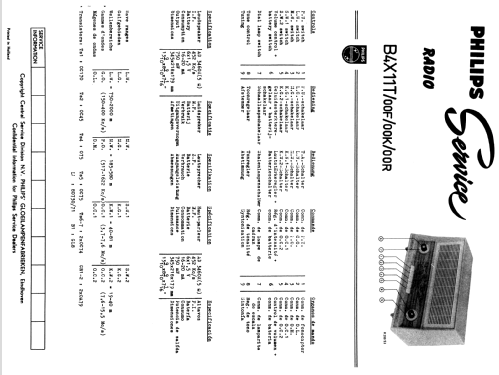

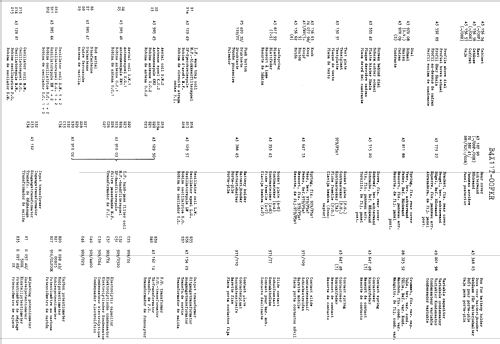

Aus dem Servicemanual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Dry Batteries / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.75 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: B4X11T /00F /00K /00R - Philips; Eindhoven tubes

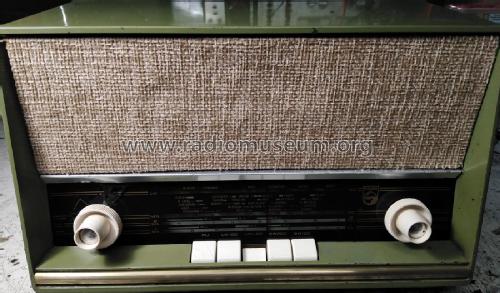

- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 345 x 218 x 179 mm / 13.6 x 8.6 x 7 inch
- Notes
-
AM-Rundfunkempfänger; Tischgerät für Batterie-Betrieb.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
