• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115264

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF116 AF117 AF117 OC75 OC75 OC74 OC74 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm

• Power out
• 0.75 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

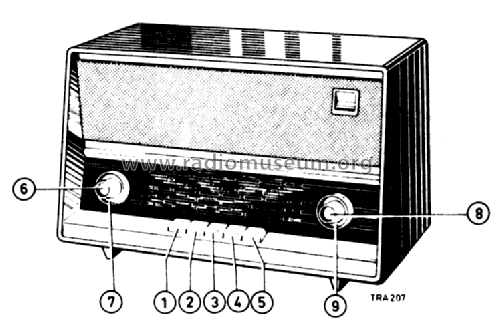

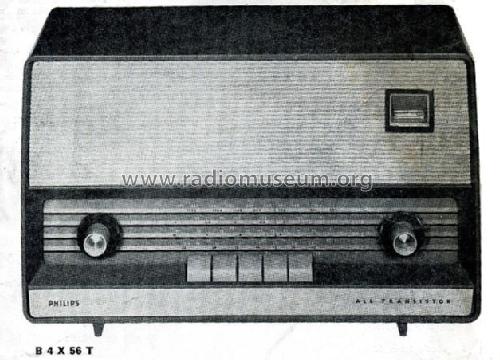

• Model: B4X56T - Philips; Eindhoven tubes

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 360 x 221 x 184 mm / 14.2 x 8.7 x 7.2 inch

• Notes

• Colors: Gray, Brown or Black.

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
