- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 193388

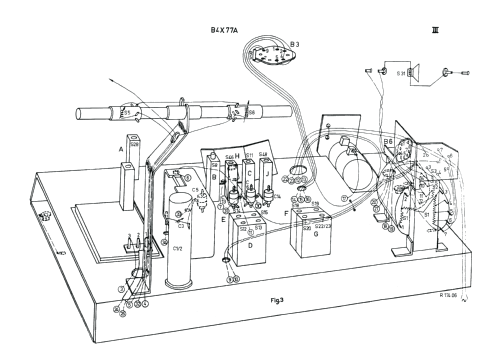

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 90; 110; 127; 145; 190; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: B4X77A - Philips; Eindhoven tubes
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 400 x 267 x 206 mm / 15.7 x 10.5 x 8.1 inch
- Notes
- Dial lamp: 8024N (6,3V/0,3A).
- Source of data
- -- Schematic
- Author
- Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
