• Country
• India

• Manufacturer / Brand
• Philips; India

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 283930

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF89 EBC81 EL84 EM84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 180; 205; 230 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

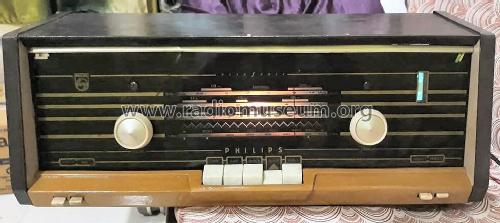

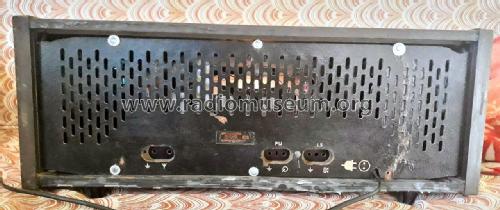

• Model: Major B5CA37A - Philips; India

• Shape
• Tablemodel with Push Buttons.

• Notes

• Speakers: 2x RCD3500X (Z = 5 ohms).

  Wave bands:
  MW:  185 - 580 m
  SW1: 19.0 - 25.0 m
  SW2: 11.0 - 16.0 m
  SW3: 30.3 - 95.2 m

  Power consumption: 47 W.

• Mentioned in
• -- Original-techn. papers. (Philips Circuits, Volume 3, 1971-73)

• Author
• Model page created by Robert Kooijman. See "Data change" for further contributors.
