B5E83A

• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62522

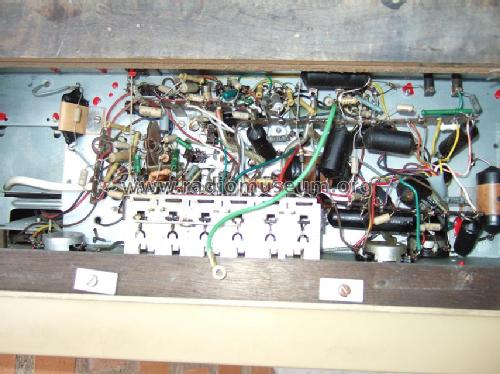

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF93 EABC80 EL84 EM80 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: B5E83A - Philips Ibérica, COPRESA,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 460 x 330 x 220 mm / 18.1 x 13 x 8.7 inch

• Notes

•  AM: 185 - 580 m.
  OC1: 59 - 187 m.
  OC2: 16,7 - 52,2 m.
  FM: 87,5 - 100 mHz. utilizando módulo FM ZB A3 696 75

  Chasis y circuito eléctrico idénticos a la Askar 617-A.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 5,785.00 Pesetas

• External source of data
• Ernst Erb

• Source of data
• Radio Historia y Técnica, J.J.E.

• Literature/Schematics (1)
• -- Original-techn. papers.
