• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29731

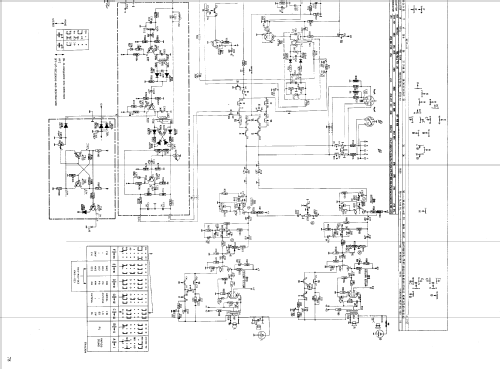

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EF183 EM87 ECC83 ECL86 ECL86 EZ81

• Number of Transistors
• 5

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: B5X34A /54 - Philips; Eindhoven tubes

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 250 x 220 mm / 23.6 x 9.8 x 8.7 inch

• Notes
• See also other variants - known to us are /00 IF=452 kHz, /16 IF=460 kHz, /51 for Export (USA), IF=452 kHz, /54 IF 452 kHz plus models with names. Same chassis also for B6X34A, B6X44A, B7X44A and B8X44A (At least one version has 5 Transistors: 3x AF126, 2x AC125). But see different front! See schematics for transistors etc. Short Waves: 16,5 - 50,8 m and 57,7 - 181,9 m. FM = 87,5 - 108 MHz.

• Price in first year of sale
• 549.00 FL

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
