• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 339722

• Number of Tubes
• 10

• Valves / Tubes

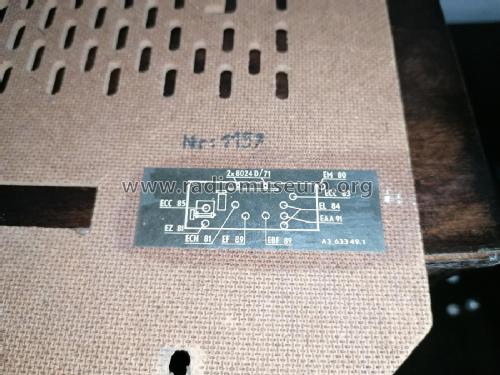

• ECC85 ECH81 EF89 EBF89 EM80 EAA91 ECC83 EL84 EL84 EZ81

• Main principle

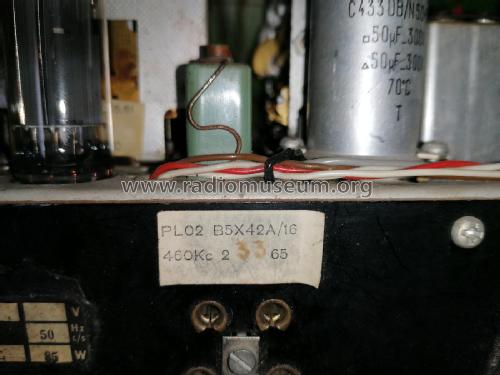

• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

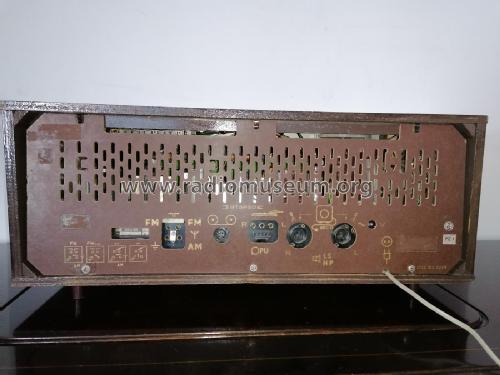

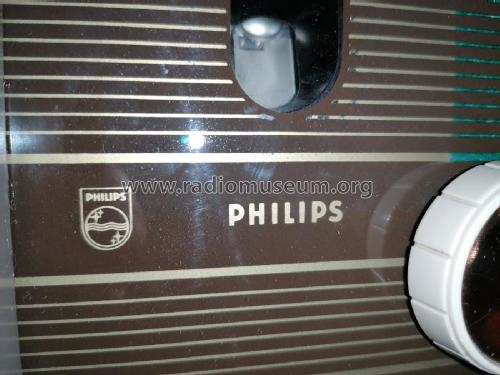

• Model: B5X42A /16 - Philips Belgium Belgien

• Shape

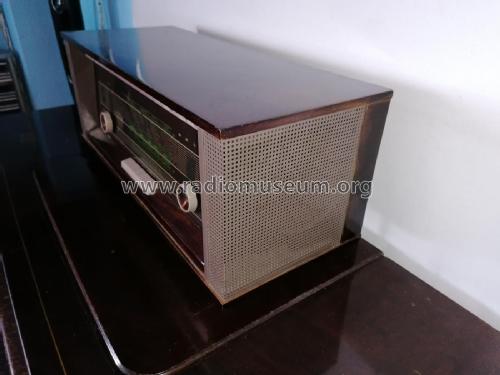

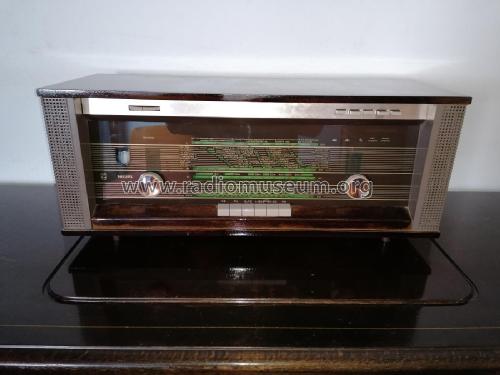

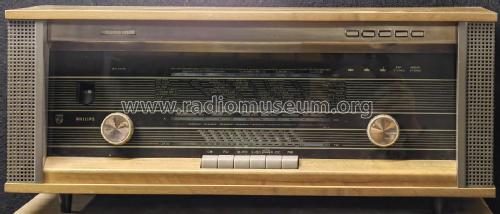

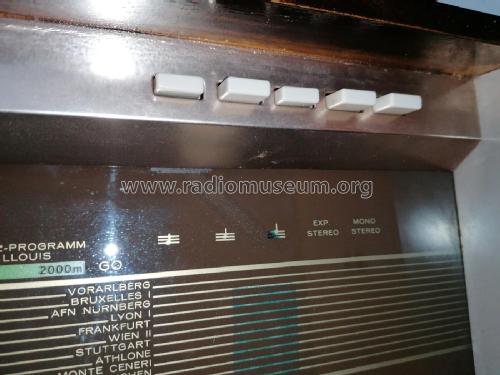

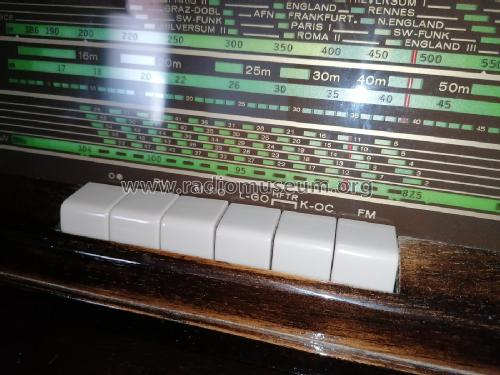

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 240 x 240 mm / 24.4 x 9.4 x 9.4 inch

• Notes

• 2 X 2 Watts Stereo Amplifier,

  800 Ω speakers.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• Author
• Model page created by Francisco Martins. See "Data change" for further contributors.
