• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 321229

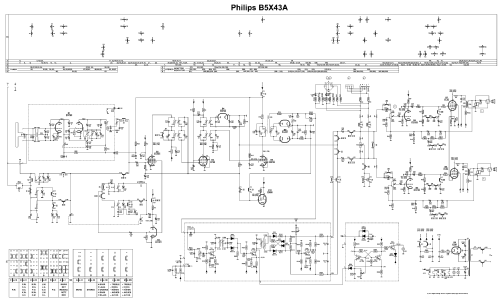

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM80 EAA91 ECC83 EL84 EL84 EZ81

• Number of Transistors
• 6

• Semiconductors
• AF126 AF126 AF126 AC125 AC125 AC127 AA119 OA200

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

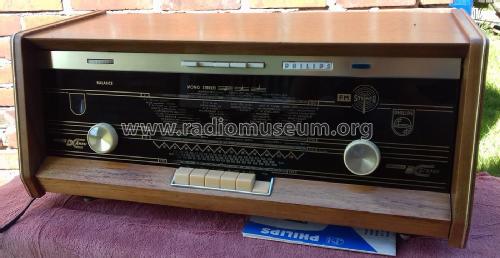

• Model: B5X43A /01 /74 - Philips Belgium Belgien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 220 x 240 mm / 21.7 x 8.7 x 9.4 inch

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
