• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29752

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

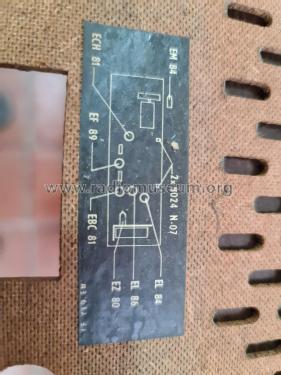

• ECH81 EF89 EBC81 EL84 EM84 EL86 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; Export model

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 90; 110; 127; 145; 190; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

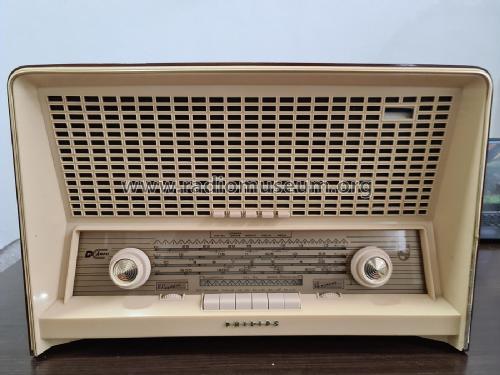

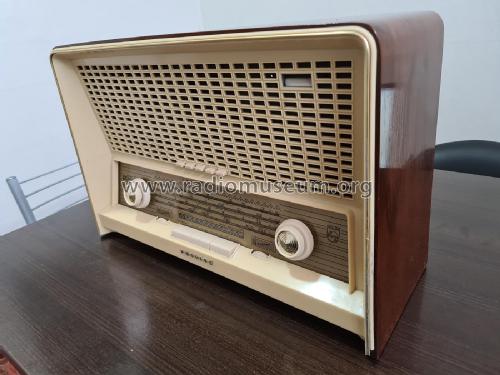

• Model: B5X85A - Philips Belgium Belgien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 540 x 338 x 211 mm / 21.3 x 13.3 x 8.3 inch

• Notes

• Wave bands:
  MW = 517 - 1620 kHz
  SW3 = 3.2 - 10 MHz
  SW2 = 9.42 - 12.08 MHz
  SW1 = 13 - 26.3 MHz

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
