B5X94A

Philips Belgium (Belgien)

Data
Forum
Pictures
Collections

  • Year
  • 1959/1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29755

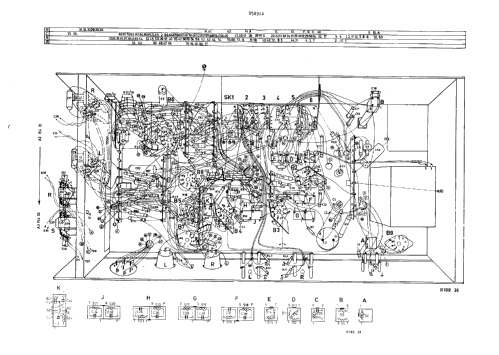

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 14 cm = 5.5 inch
  • Power out
  • 7 W (unknown quality)

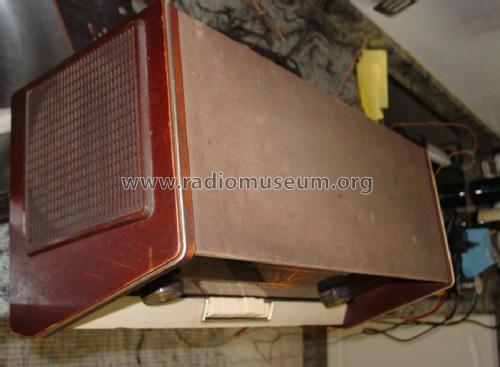

  • Material
  • Wooden case
  • from Radiomuseum.org

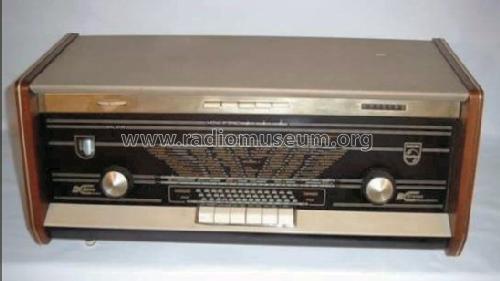

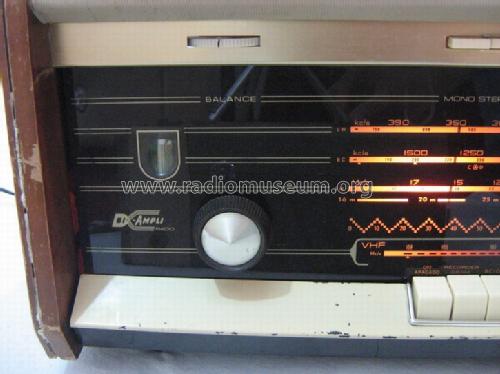

  • Model: B5X94A - Philips Belgium Belgien
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 552 x 242 x 216 mm / 21.7 x 9.5 x 8.5 inch
  • Notes

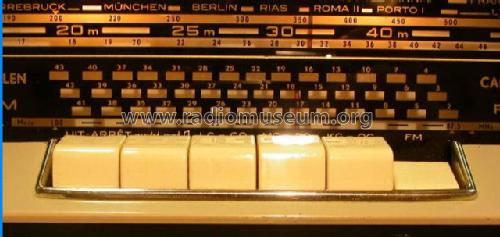

  • AM radio with built-in ferroceptor:
    • LW: 150 - 260 kHz.
    • BC: 517 - 1620 kHz.
    • SW: 5,95 - 18,2 MHz.
    FM radio with dipole antenna input: 87,5 - 100 MHz.

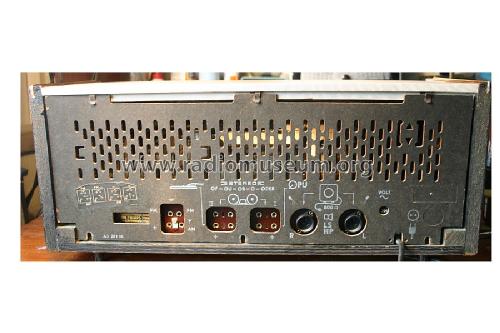

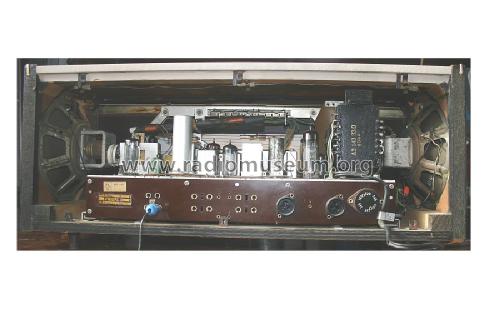

    Amplifier: 2 x 3,5 W in 800 Ohm (loudspeakers AD3700AM).

    Dial lamps: 8024N (6.3V / 300mA, bajonet).
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
