• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29762

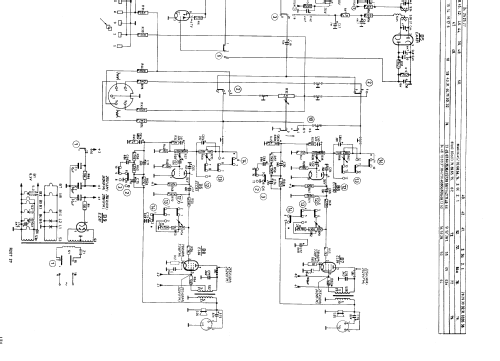

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM80 EAA91 ECC83 EL84 EL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 18 cm = 7.1 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Bi-Ampli B6X23A /01 - Philips Belgium Belgien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 290 x 260 mm / 23.6 x 11.4 x 10.2 inch

• Notes
• Loudspeaker AD3800, Impedance 800 Ohm. Skalen Aufschrift NL/FR Getrenter skalenantrieb AM/FM

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
