• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29766

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EF183 EM87 ECC83 ECL86 ECL86 EZ81

• Number of Transistors
• 6

• Semiconductors
• AF126 AF126 AF126 AC125 AC125 AC127

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 18 cm = 7.1 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

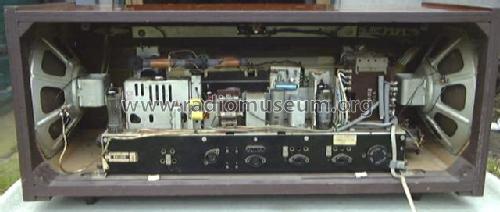

• Model: B6X44A - Philips; Eindhoven tubes

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 640 x 280 x 270 mm / 25.2 x 11 x 10.6 inch

• Notes

• Mit "Rapido Sound" (Stand-by); Stereo-Decoder eingebaut.

  Loudspeakers 2x AD3800M (5 Ohm)

  Ausgangsleistung 2 x 2 W.

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
