B8E-83A

• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62520

• Picture

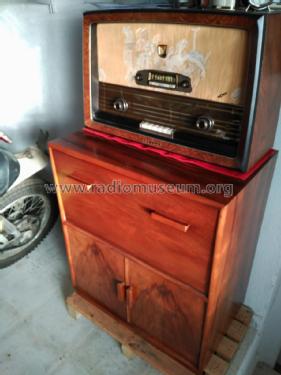

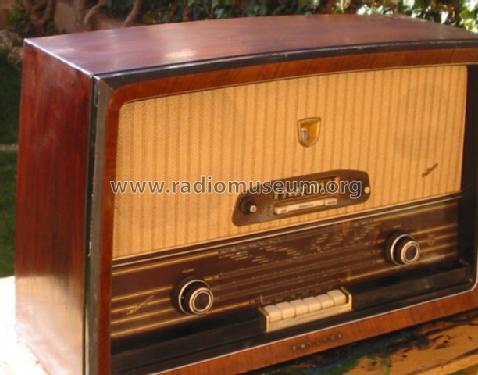

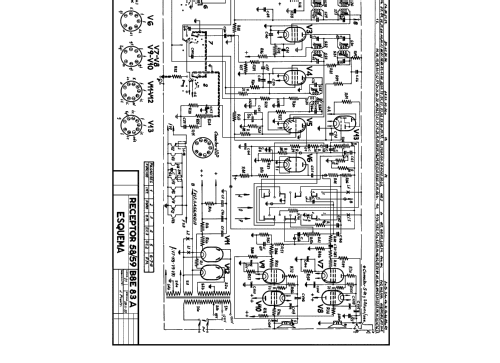

• Schematics

Previous Next

Previous Next

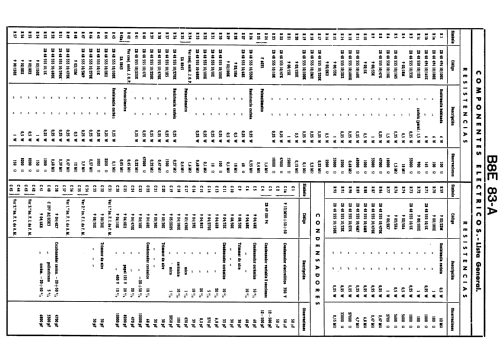

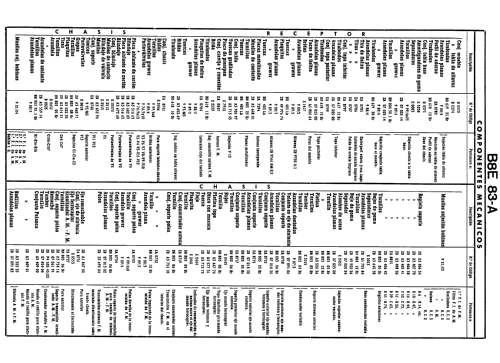

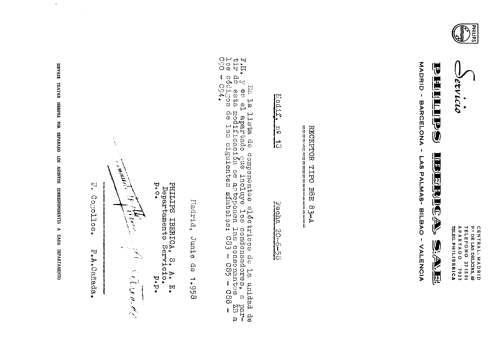

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• ECC85 ECH81 EF93 EF80 EM80 EABC80 EBC90 HL94 HL94 HL94 HL94 EZ80 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: B8E-83A - Philips Ibérica, COPRESA,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 682 x 437 x 260 mm / 26.9 x 17.2 x 10.2 inch

• Notes

• AM: 185 - 580 m.
  OC1: 59 - 187 m.
  OC2: 16,7 - 58,5 m.
  FM: 87,5 - 100 MHz utilizando módulo FM tipo ZB A3 696 75

  2 Altavoces 20 cm y 10 cm.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 9,234.00 ESP

• External source of data
• Ernst Erb

• Source of data
• Radio Historia y Técnica, J.J.E.

• Literature/Schematics (1)
• -- Original-techn. papers.
