• Country
• India

• Manufacturer / Brand
• Philips; India

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 283952

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH81 UBF80 UBC41 UL41 DM71 UY41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110; 125; 200; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

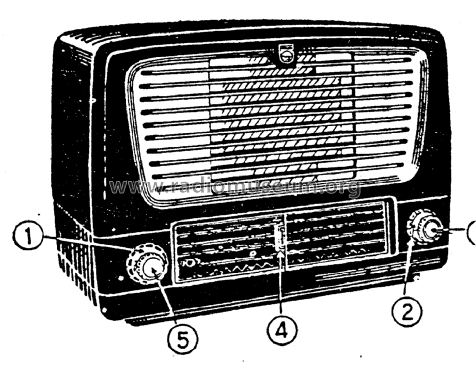

• Model: International AC/DC BCA435U - Philips; India

• Shape
• Tablemodel, with any shape - general.

• Notes

• Speaker type: AD3700X (49.239.85) (Z = 5 ohms).

  Wave bands:
  MW: 185 - 580 m
  SW2a: 11.4 - 19.9 m
  SW2b: 24.9 - 32.1 m
  SW3:   30 - 93.1 m

  Power consumption: 35 W.

• Mentioned in
• -- Original-techn. papers. (Philips Circuits, Volume 3, 1971-73)

• Author
• Model page created by Robert Kooijman. See "Data change" for further contributors.
