• Country
• Switzerland

• Manufacturer / Brand
• Philips - Schweiz

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13316

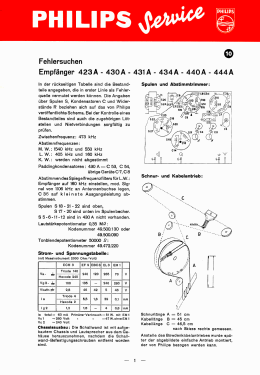

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF9 EBC3 EL3 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21.5 cm = 8.5 inch

• Power out
• 2.5 W (undistorted)

• Material
• Bakelite case

• from Radiomuseum.org

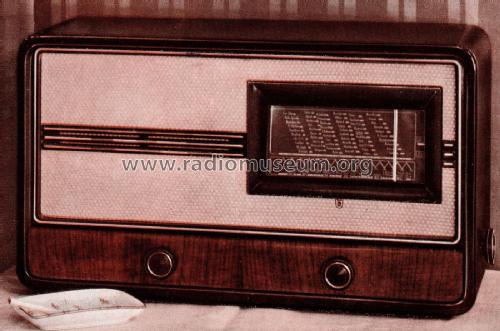

• Model: 423A - Philips - Schweiz

• Dimensions (WHD)
• 530 x 310 x 230 mm / 20.9 x 12.2 x 9.1 inch

• Price in first year of sale
• 275.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

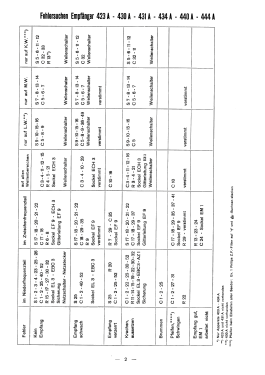

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.
