• Country
• Switzerland

• Manufacturer / Brand
• Philips - Schweiz

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13382

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

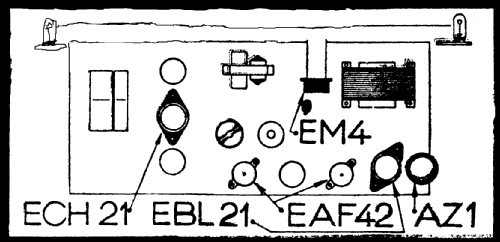

• ECH21 EAF42 EAF42 EBL21 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 22 cm = 8.7 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: BCH481A - Philips - Schweiz

• Dimensions (WHD)
• 440 x 295 x 217 mm / 17.3 x 11.6 x 8.5 inch

• Price in first year of sale
• 495.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.

• Other Models

• Here you find 290 models, 216 with images and 224 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
