BDK583A

Philips Radio A/S; København

Data

Forum

Pictures

Collections

Country
Denmark

Manufacturer / Brand
Philips Radio A/S; København

Year
1958

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
191511

Schematics

BDK583A; Philips Radio A/S; K (ID = 1546369) Radio — Philips Radio A/S; K BDK583A (3)

BDK583A; Philips Radio A/S; K (ID = 1546370) Radio — Philips Radio A/S; K BDK583A (3)

BDK583A; Philips Radio A/S; K (ID = 1546371) Radio — Philips Radio A/S; K BDK583A (3)

BDK583A; Philips Radio A/S; K (ID = 1546372) Radio — Philips Radio A/S; K BDK583A (3)

BDK583A; Philips Radio A/S; K (ID = 1546373) Radio — Philips Radio A/S; K BDK583A (3)

BDK583A; Philips Radio A/S; K (ID = 1546374) Radio — Philips Radio A/S; K BDK583A (3)

BDK583A; Philips Radio A/S; K (ID = 3000435) Radio — Philips Radio A/S; K BDK583A (2)

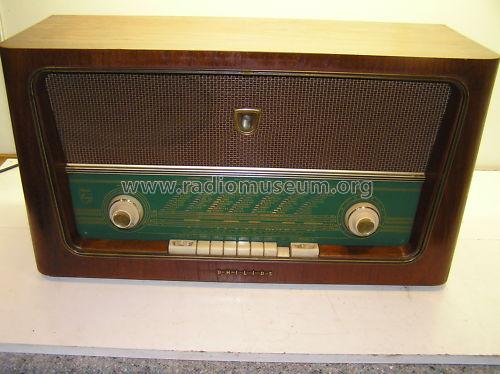

BDK583A; Philips Radio A/S; K (ID = 935121) Radio — Philips Radio A/S; K BDK583A (2)
ebay.de VK:radiocollect #110644171176

BDK583A; Philips Radio A/S; K (ID = 3000431) Radio — Philips Radio A/S; K BDK583A (2)

BDK583A; Philips Radio A/S; K (ID = 3000432) Radio — Philips Radio A/S; K BDK583A (2)

BDK583A; Philips Radio A/S; K (ID = 3000433) Radio — Philips Radio A/S; K BDK583A (2)

BDK583A; Philips Radio A/S; K (ID = 3000434) Radio — Philips Radio A/S; K BDK583A (2)

BDK583A; Philips Radio A/S; K (ID = 3000436) Radio — Philips Radio A/S; K BDK583A (2)

BDK583A; Philips Radio A/S; K (ID = 3000437) Radio — Philips Radio A/S; K BDK583A (2)

BDK583A; Philips Radio A/S; K (ID = 3000438) Radio — Philips Radio A/S; K BDK583A (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
7

Valves / Tubes
ECC85 ECH81 EBF89 EABC80 EM80 EL84 EZ80

Main principle
Superheterodyne (common); ZF/IF 445/10700 kHz; 2 AF stage(s)

Tuned circuits
6 AM circuit(s) 9 FM circuit(s)

Wave bands
Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Wooden case

from Radiomuseum.org
Model: BDK583A - Philips Radio A/S; København

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
650 x 358 x 250 mm / 25.6 x 14.1 x 9.8 inch

Source of data
-- Original-techn. papers.

Author
Model page created by Aglef Tröger. See "Data change" for further contributors.
