• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100094

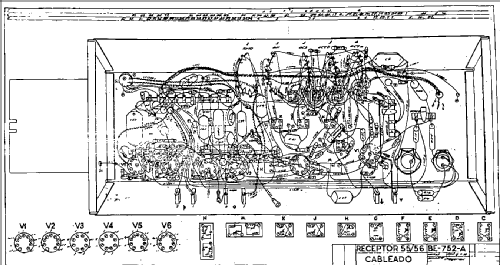

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECH81 EBF80 EBC41 EBC41 EM80 EL84 EL84 EZ80 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150 Volt

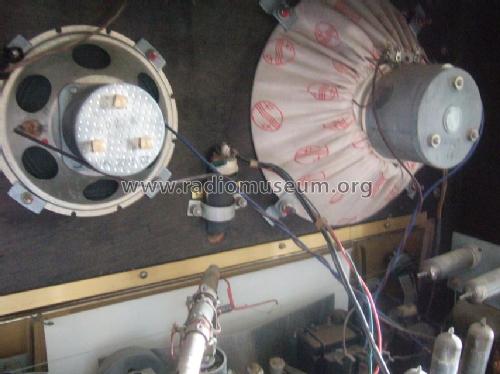

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: BE-752-A - Philips Ibérica, COPRESA,

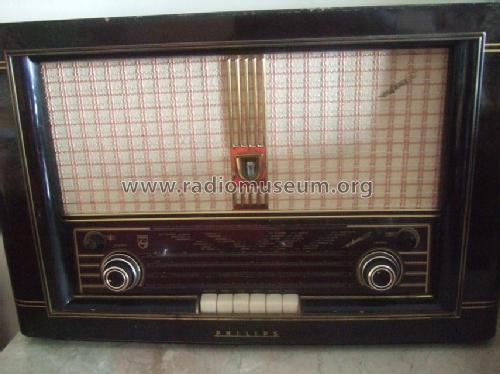

• Shape
• Tablemodel with Push Buttons.

• Notes

• Philips Ibérica, S.A.E. (Miniwatt, Copresa), BE-752-A

  Onda media, banda Pesquera y dos Ondas Cortas

  PVP: 5.600 + 294 (5,25% Usos y Consumos)= 5.894 Pts

• Price in first year of sale
• 5,894.00 ESP

• Mentioned in
• Catálogo Philips "La Era Novosonic 1956"

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
