Bergamo 19 TI 250U -00
Philips Italy; Milano (MI)
- Country
- Italy
- Manufacturer / Brand
- Philips Italy; Milano (MI)
- Year
- 1962 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 352490
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- PC88 PC86 PCF801 PCC189 EF183 EF184 EF184 PCF80 PCF80 PCL86 PCL85 PCL84 ECH83 PCF80 PCL85 PL500 PY81 DY87 AW47-91
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 45900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org

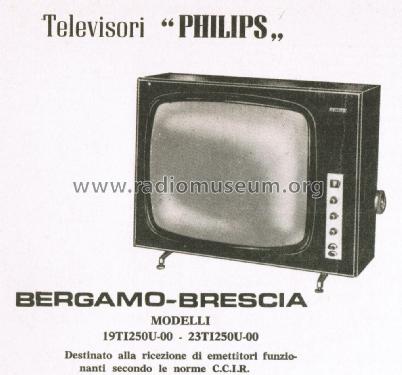

- Model: Bergamo 19 TI 250U -00 - Philips Italy; Milano MI
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Televisore in bianco/nero con VHF ed UHF. Cinescopio alluminato da 19 pollici con deflessione 110°. Focalizzazione automatica elettrostatica e stabilizzazione automatica delle dimensioni dell'immagine.
Altoparlante ad alta impedenza 800 Ω senza trasformatore di uscita, collegato direttamente alla seconda griglia della finale audio.
Ricezione delle emittenti funzionanti secondo le norme C.C.I.R.
- Mentioned in

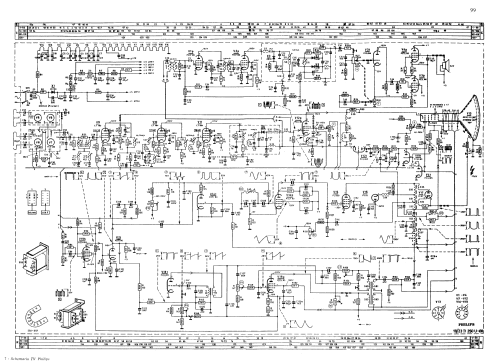

- -- Schematic (Schemario TV Philips Service, Edizioni CELI 1972.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
