• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96043

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110-125; 145-160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

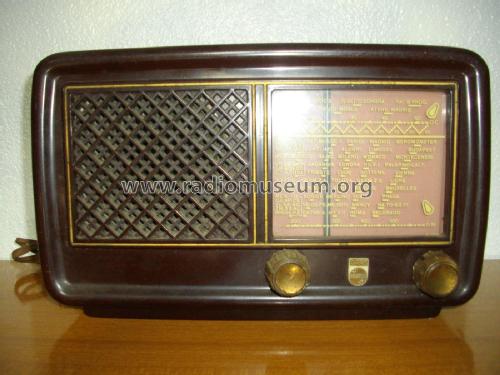

• Model: BI201U - Philips Italy; Milano MI

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• 2 gamme d'onda.
  2 wave bands.

• Price in first year of sale
• 29,000.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic (Il Radio Libro D.E. Ravalico 13a edizione Hoepli editore 1952.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
