• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112205

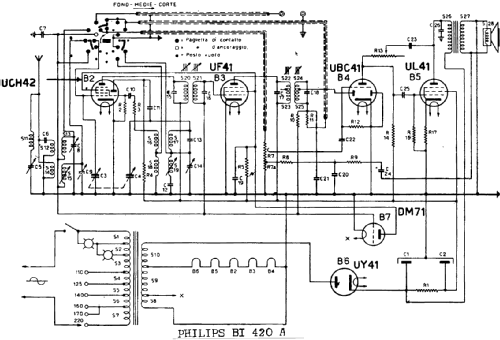

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 DM71 UY41

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Power out
• 2.2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

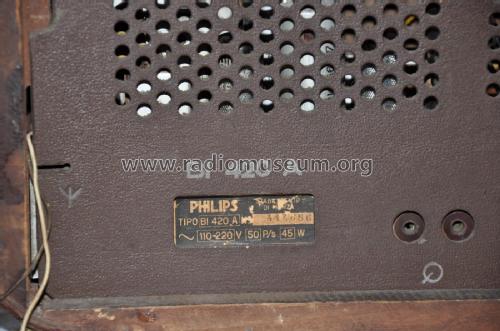

• Model: BI420A - Philips Italy; Milano MI

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 280 x 180 mm / 21.3 x 11 x 7.1 inch

• Source of data
• Guida Pratica Antique Radio III (2000)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
