• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 201133

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

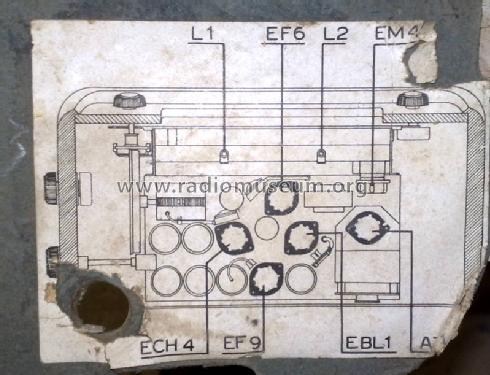

• ECH4 EF9 EF6 EBL1 EM4 AZ1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

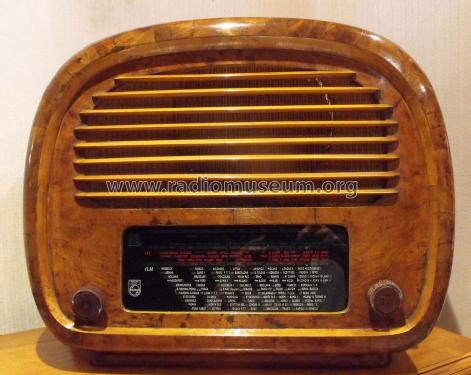

• Model: BI561A [early] - Philips Italy; Milano MI

• Shape
• Tablemodel, low profile (big size).

• Notes
• Radio philips modello bi 561 a anno 1946-47. Esiste un modello omonimo ma risalente alla seconda metà degli anni '50.

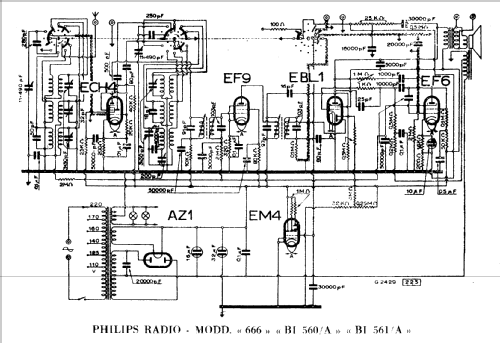

  Adotta lo stesso schema del modello 666.

• Price in first year of sale
• 32,450.00 ITL

• Source of data
• Guida Pratica Antique Radio III (2000)

• Author
• Model page created by Alessandro Staffoni. See "Data change" for further contributors.
