• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91455

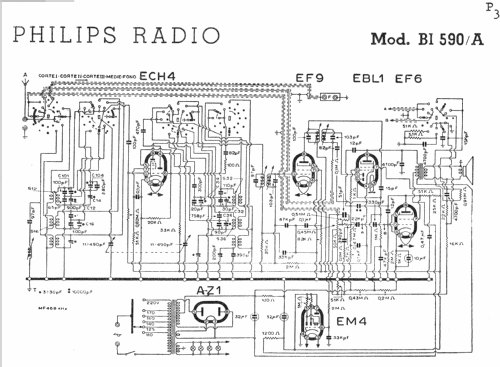

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 EF9 EBL1 EF6 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 170; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• from Radiomuseum.org
• Model: BI590/A - Philips Italy; Milano MI

• Notes
• Gamme d'onda: OM e 3× OC.
  Wave bands: BC and 3× SW.

• Mentioned in
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 206)

• Literature/Schematics (1)
• Riparazioni - Scuola Radio Elettra (pag. P3)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
