• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 188761

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM80 EAA91 ECC83 EL84 EL84 EZ81

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

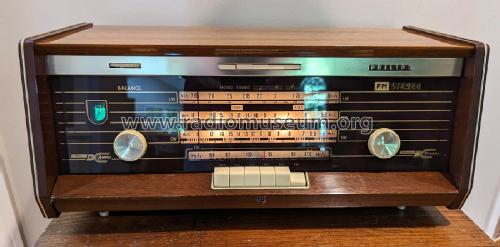

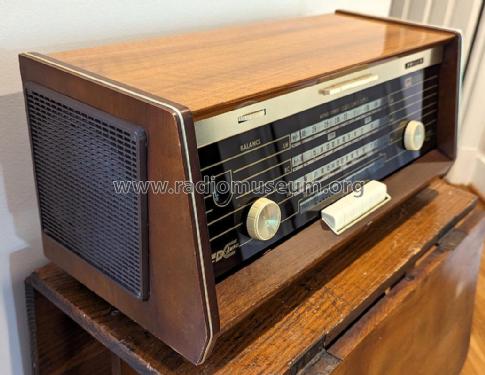

• Model: Bi-Ampli B5X33A /64 - Philips; Eindhoven tubes

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 22.5 x 9.5 x 9.5 inch / 572 x 241 x 241 mm

• Notes
• Philips B5X33A/64 is an export model for the Northamerican market.
  FM Stereo with built-in transistorized MPX (Stereo-) Decoder.
  FM Coverage: 87.5...108 MHz.

• Net weight (2.2 lb = 1 kg)
• 22 lb (22 lb 0 oz) / 9.988 kg

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
