• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1977 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 234739

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

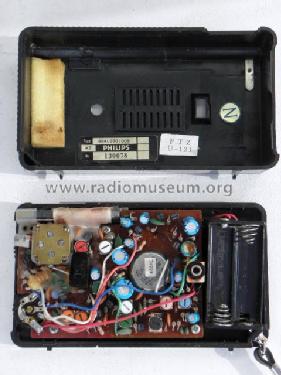

• Model: Blues 90AL070 /00S - Philips; Eindhoven tubes

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 150 x 80 x 40 mm / 5.9 x 3.1 x 1.6 inch

• Notes

• Ferritantenne für MW, Teleskopantenne für UKW, Anschluss für Kleinhörer

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Author
• Model page created by Werner Wussow. See "Data change" for further contributors.
