BN572-A, BN572-A2
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 96941
Click on the schematic thumbnail to request the schematic as a free document.

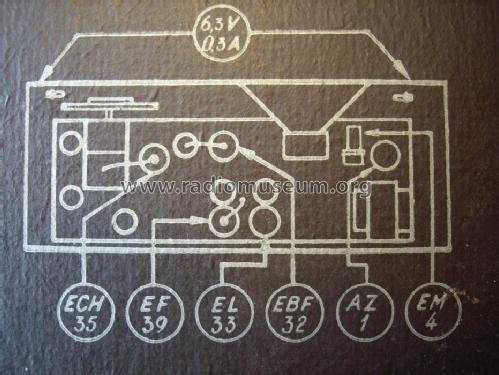

- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: BN572-A, BN572-A2 - Philips; Eindhoven tubes

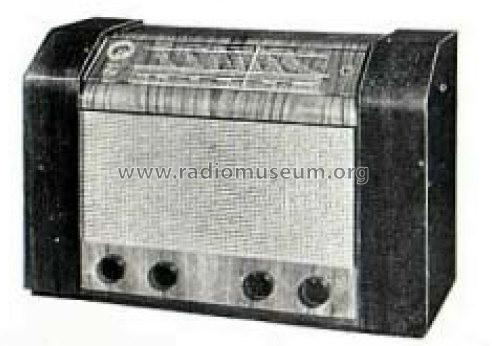

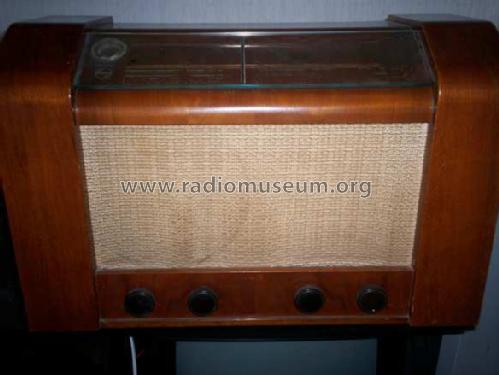

- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 550 x 370 x 228 mm / 21.7 x 14.6 x 9 inch
- Notes
- Does also have a band for fishery frequencies.
- Net weight (2.2 lb = 1 kg)
- 11.1 kg / 24 lb 7.2 oz (24.449 lb)
- Price in first year of sale
- 295.00 Hfl
- Source of data
- Technisch- Commercieel - Radio Vademecum Staleman
- Literature/Schematics (1)
- -- Schematic (2 verschiedene Pläne.)
- Author
- Model page created by John Koster. See "Data change" for further contributors.
