Coquette BR207U
Philips do Brasil S.A.
- Country
- Brazil
- Manufacturer / Brand
- Philips do Brasil S.A.
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 107580

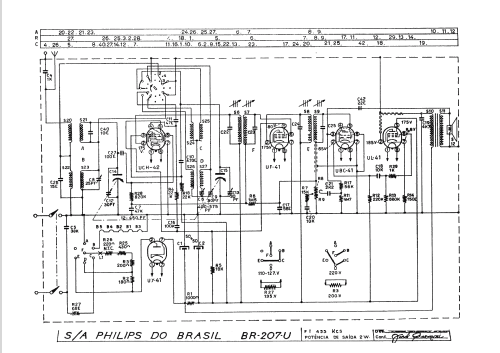

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 2.5 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Coquette BR207U - Philips do Brasil S.A.
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Cabinet in Philite, colors grey, green or ivory.
This radio was also marketed as Mullard R5305U.
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Esquemário Philips - Editora Industrial Teco Ltda
- Author
- Model page created by Meyer Rochwerger. See "Data change" for further contributors.
