BR217U
Philips do Brasil S.A.
- Country
- Brazil
- Manufacturer / Brand
- Philips do Brasil S.A.
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74198

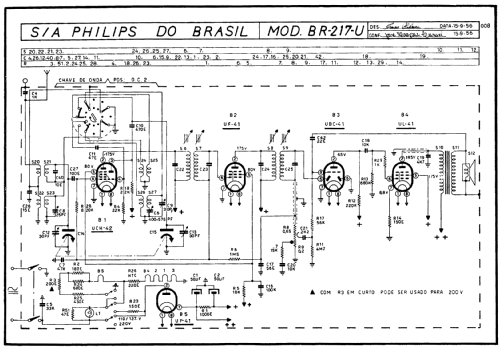

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- Material
- Bakelite case
- from Radiomuseum.org
- Model: BR217U - Philips do Brasil S.A.
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- One piece lower front slide rule dial and upper vertical grill bars. Lower left on/off/volume knob and right tuning and band switch knobs. Dial lamp 8097D.
- External source of data
- Esquemario Philips do Brasil 1949/1957. Editora Industrial Teco. Sao Paulo
- Author
- Model page created by Carlos Lazarini. See "Data change" for further contributors.
