• Country
• Brazil

• Manufacturer / Brand
• Philips do Brasil S.A.

• Year
• 1956 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112208

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: BR-326-U - Philips do Brasil S.A.

• Literature/Schematics (1)

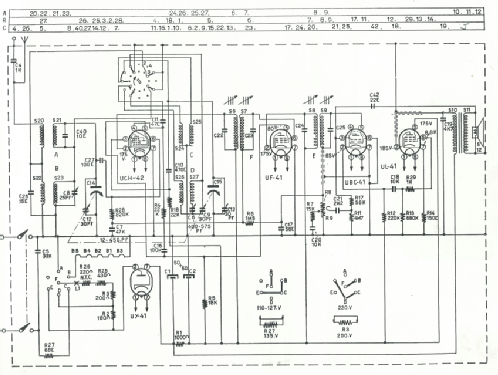

• -- Schematic

• Author
• Model page created by Jose Duarte Costa. See "Data change" for further contributors.
