• Country
• Denmark

• Manufacturer / Brand
• Philips Radio A/S; København

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345705

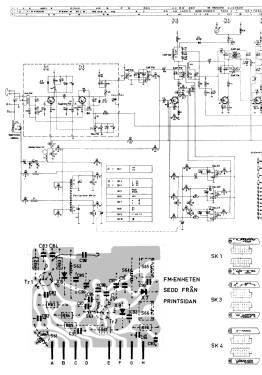

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• 8041D_lamp 8041D_lamp

• Number of Transistors
• 10

• Semiconductors
• AF102 AF114 AF116 AF116 AF116 AC125 OC75 OC75 AC128 AC128 AA119 AA119 AA119 AA119 E25C5 OA90 OA90 BA102

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 6 x 1.5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

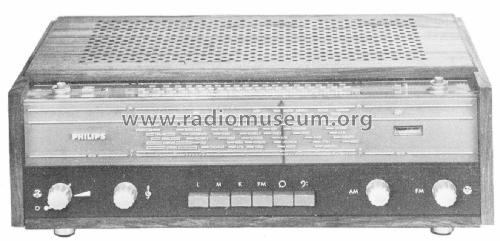

• Model: Bungalow B4DK36T Ch= T14B - Philips Radio A/S; København

• Notes

• Sockets for battery eliminator NG3973 and for record player and tape recorder.

  Cases with teak or rosewood.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Lars Nord. See "Data change" for further contributors.
