B/W TV-Multinorm X11T601

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1967/1968

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 169173

• Picture

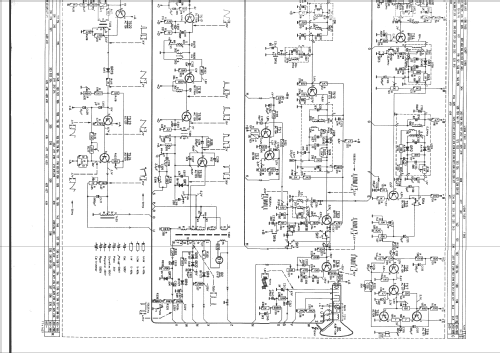

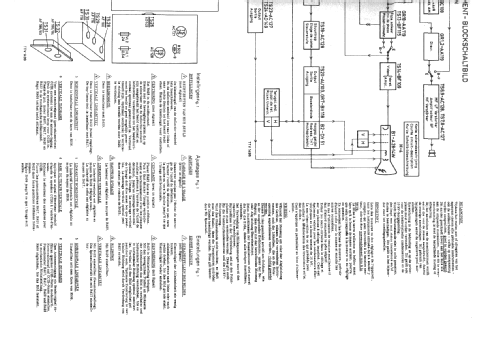

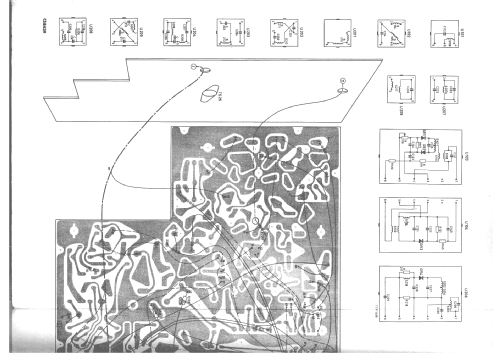

• Schematics

Previous Next

Previous Next

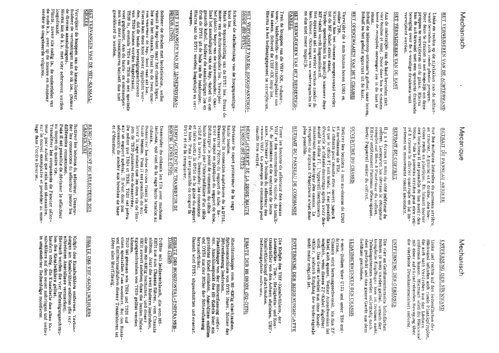

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• DY51 A28-14W

• Number of Transistors
• 32

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 110; 127; 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: B/W TV-Multinorm X11T601 - Philips; Eindhoven tubes

• Dimensions (WHD)
• 370 x 310 x 270 mm / 14.6 x 12.2 x 10.6 inch

• Notes

• - VHF & UHF
  - 22 diodes
  - Multinorm : BELG CCIR UHF fr VHF fr

  - The rectifier in the receiver enables the battery to be recharged.

  This portable model was probably based on a Novak design and sold in Belgium.

• Source of data
• -- Original-techn. papers.
