• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29802

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

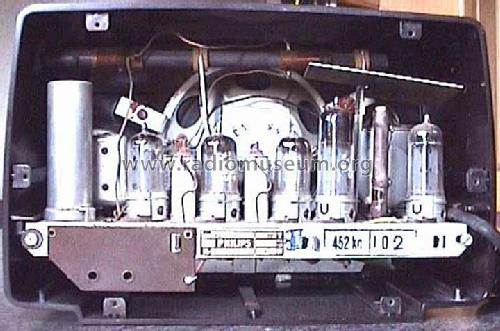

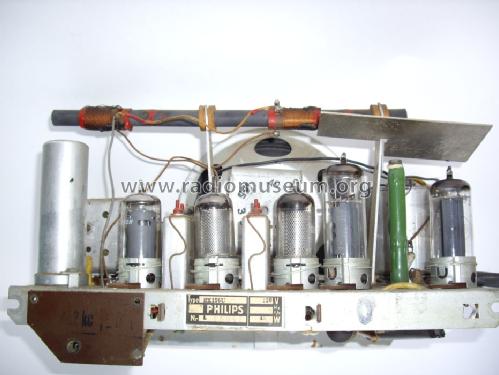

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY42

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-127 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Material
• Bakelite case

• from Radiomuseum.org

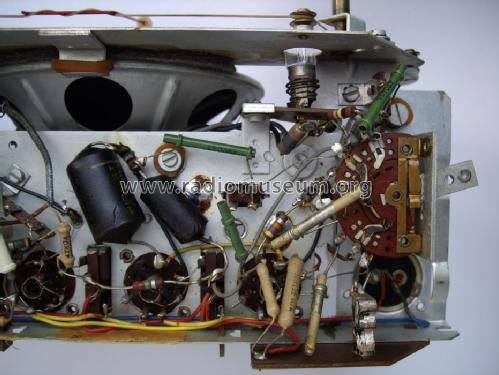

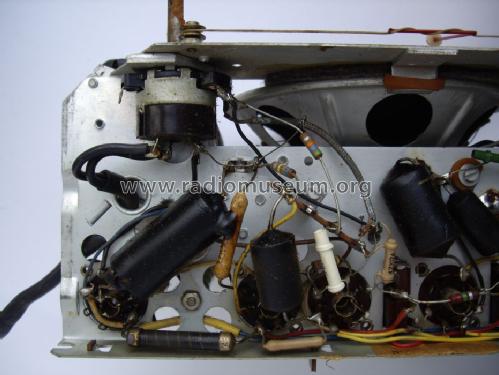

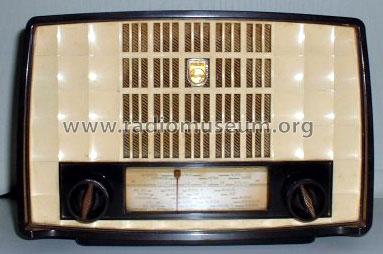

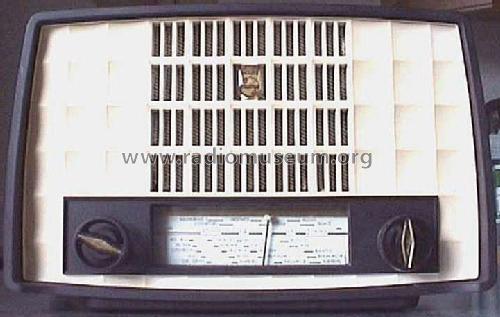

• Model: BX156U /01 /69 - Philips; Eindhoven tubes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 260 x 140 x 175 mm / 10.2 x 5.5 x 6.9 inch

• Notes

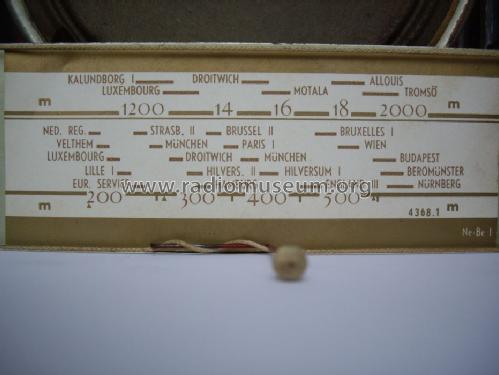

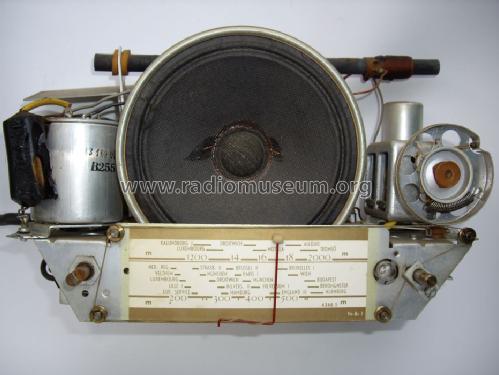

• AM radio with built-in ferroceptor:
  • LW: 150 - 260 kHz.
  • BC: 517 - 1622 kHz.
  Loudspeaker: 9742X (5Ω).

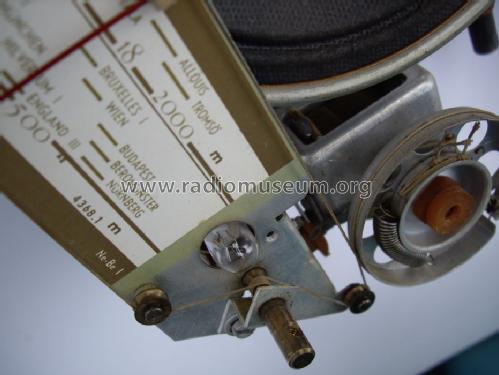

  Dial lamp: 8034D (E10, 10V/200mA).

  The difference between versions /01 and /69 is the tuning scale.
  There are also variants /00 and /19 that work only on 220 volt mains.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• External source of data
• Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 5248 models, 4392 with images and 3450 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
