- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1953 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 201949
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110-127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Bakelite case
- from Radiomuseum.org

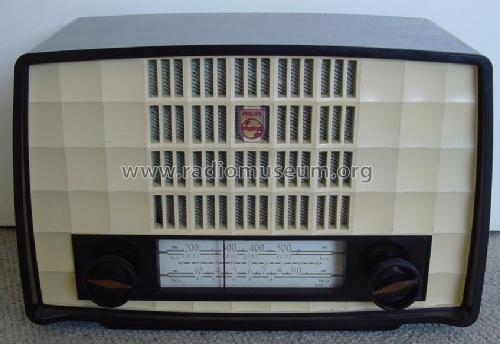

- Model: BX236U /95 - Philips; Eindhoven tubes
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 240 x 170 x 140 mm / 9.4 x 6.7 x 5.5 inch
- Notes
-
The standard mains voltage is 220V. The version /95 (and /62) can be adapted to mains voltages of 110-127 V by short-circuiting R11 and R12.
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Kevin Gregson. See "Data change" for further contributors.
