• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 226240

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UAF42 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); 2 AF stage(s); Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Material
• Bakelite case

• from Radiomuseum.org

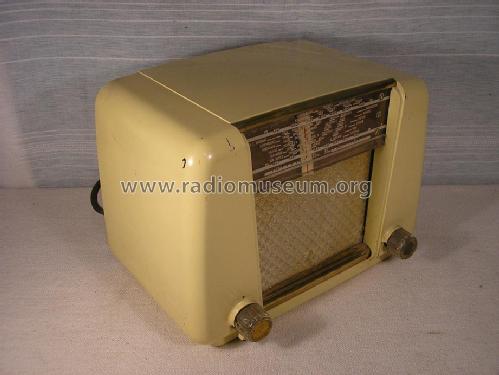

• Model: BX300U /19 - Philips Belgium Belgien

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 270 x 200 x 190 mm / 10.6 x 7.9 x 7.5 inch

• Notes
• Export model for Sweden.

  AM radio for external antenna:
  • LW: 150 - 400,5 kHz.
  • BC: 517 - 1600 kHz.
  • SW: 9,5 - 12 MHz.
  Loudspeaker: 9742X (5Ω).
  Dial lamp: 8097D (E10, 19V/97mA).

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.
