• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29859

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EAF42 EBC41 EL41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Power out
• 3 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

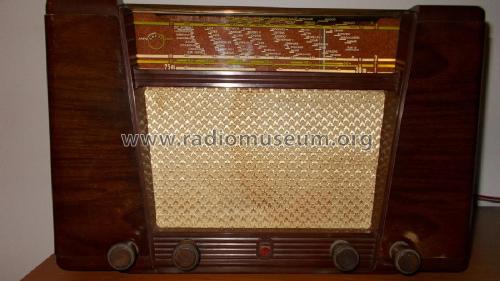

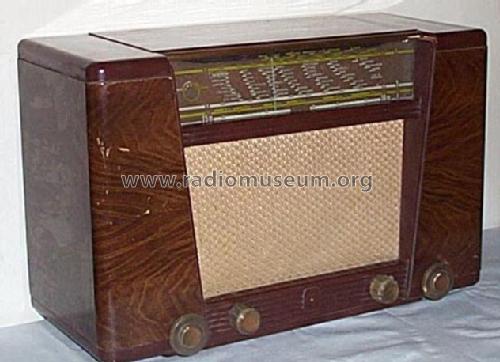

• Model: BX400A - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 455 x 300 x 205 mm / 17.9 x 11.8 x 8.1 inch

• Notes

• Chassis like BX390A.

  AM radio for external antenna:
  • LW: 150 - 395 kHz.
  • BC: 517 - 1622 kHz.
  • SW1: 9,5 - 12 MHz (band spread).
  • SW2: 5,92 - 18,2 MHz.

  Loudspeaker: 9738X (5Ω).

  Dial lamps: 2x 8045D (E10, 6,3V/320mA).

• Price in first year of sale
• 225.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman
