- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1952/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29867

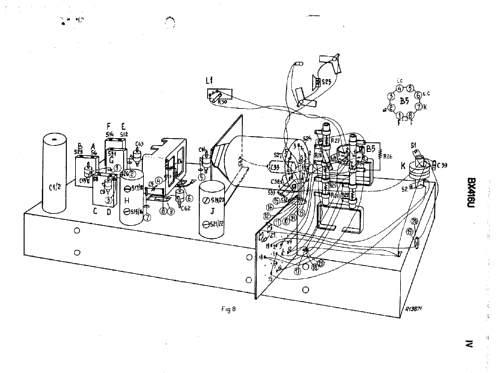

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: BX416U - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 380 x 250 x 200 mm / 15 x 9.8 x 7.9 inch
- Notes
-
3 KW ranges, specially made for use in the tropics.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Price in first year of sale
- 259.00 Hfl
- Source of data
- Technisch- Commercieel - Radio Vademecum Staleman
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
