- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1953/1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29873
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 90; 110; 125; 180; 200; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org

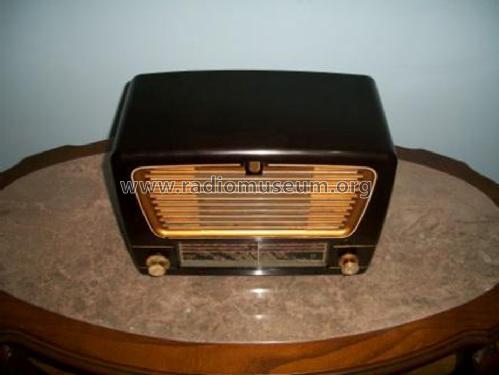

- Model: BX435A - Philips; Eindhoven tubes
- Dimensions (WHD)
- 375 x 270 x 175 mm / 14.8 x 10.6 x 6.9 inch
- Notes
- 3 KW Bereiche
- Price in first year of sale
- 198.00 Hfl
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
