- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153216

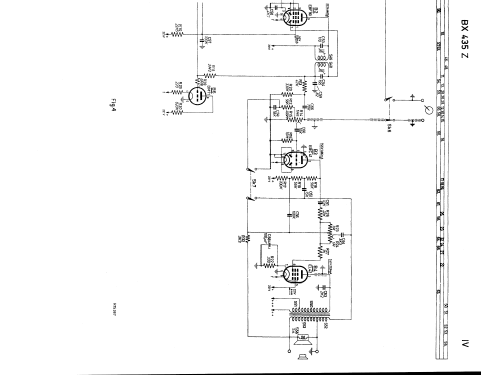

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Line / Batteries (any type) / 90-220 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch
- Material

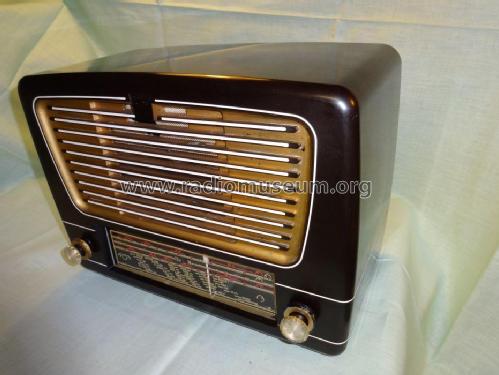

- Bakelite case
- from Radiomuseum.org
- Model: BX435Z - Philips; Eindhoven tubes
- Dimensions (WHD)
- 375 x 275 x 180 mm / 14.8 x 10.8 x 7.1 inch
- Notes
- With vibrator AU1004 "Vibraphil" for 6 V. Specially made for use in the tropics. Dial Lamp= 8045D.00
- Net weight (2.2 lb = 1 kg)
- 6.8 kg / 14 lb 15.6 oz (14.978 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Carlos Alves. See "Data change" for further contributors.
